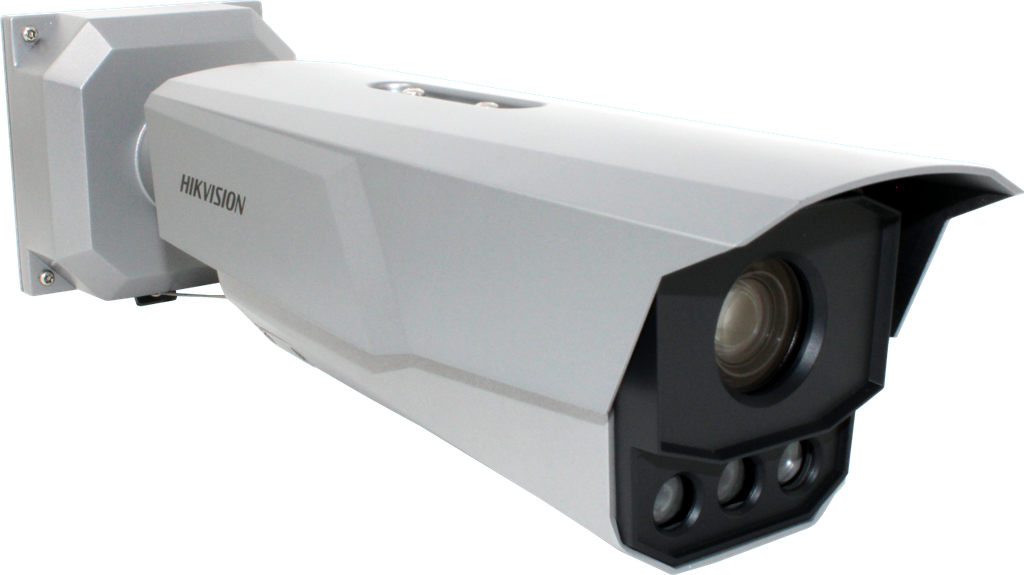

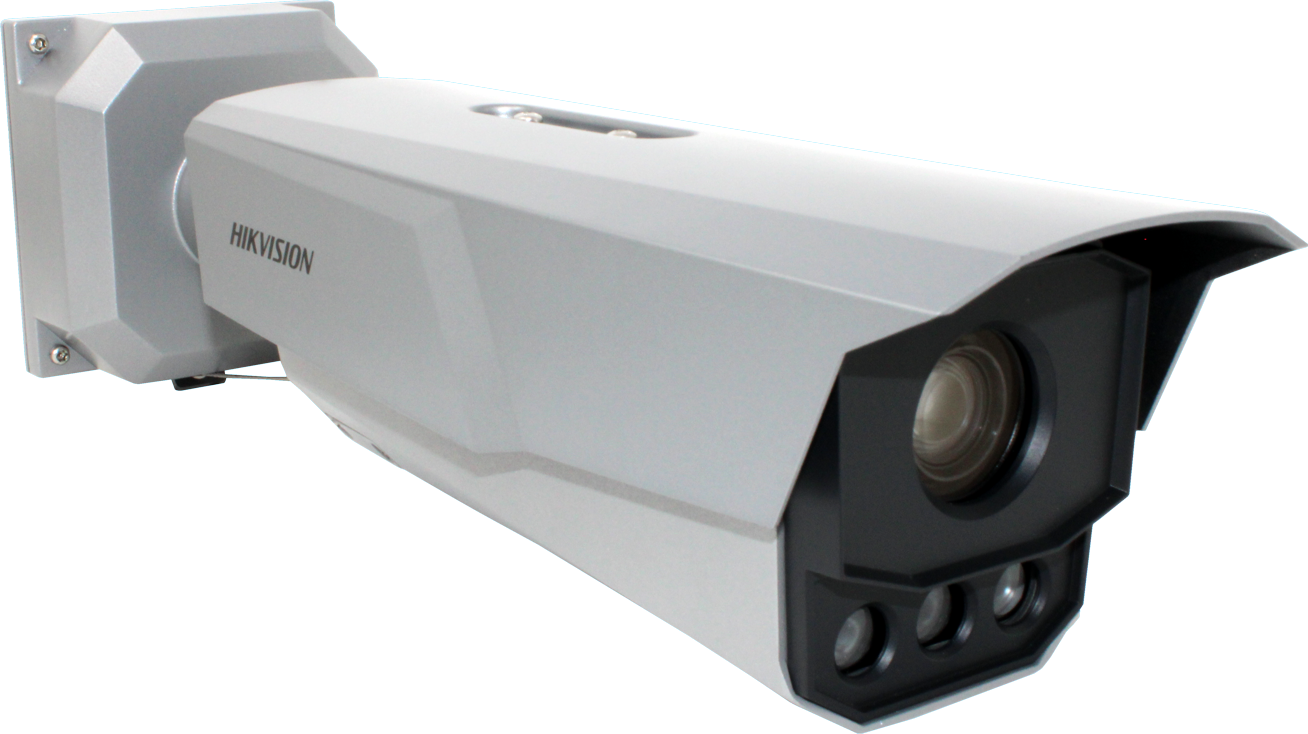

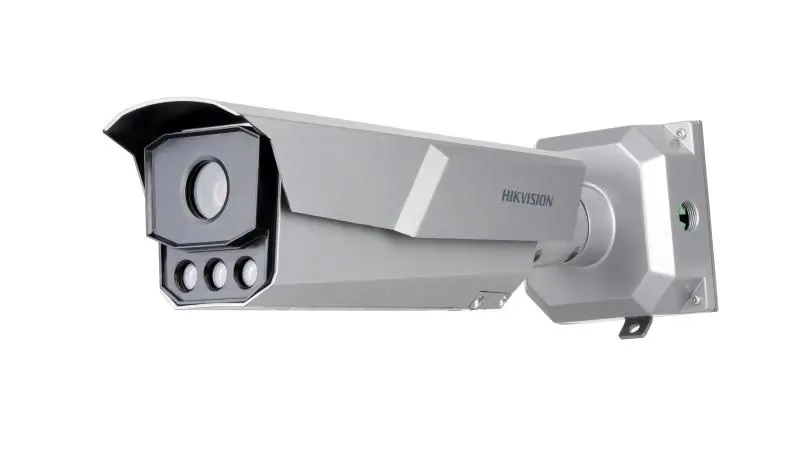

Camera nhận dạng biển số xe, phát hiện vi phạm giao thông Hikvision iDS-TCM403-BBI

• Camera
• Image Sensor1/1.8″ progressive scan CMOS
• Max. Resolution2688 × 1520
• Min. IlluminationColor: 0.001 Lux @ (F1.2, AGC ON)
• Shutter Time1/25 s to 1/100,000 s
• Day & NightIR cut filter

• Lens
• Focal Length & FOV

  2.8-12mm : Horizontal: 113.5° to 39°, Vertical: 58.4° to 22.7°, Diagonal: 141.3° to 44.3°

  8-32mm : Horizontal: 41.9° to 15.1°°, Vertical: 22.9° to 8.64°, Diagonal: 48.8° to 17.3°

  10-50mm: Horizontal: 32.2° to 7.8°°, Vertical: 18.1° to 4.4°, Diagonal: 37.1° to 8.95°

• FocusAuto
• Iris TypeDC-IRIS
• Apeture

  2.8-12mm : F1.38

  8-32mm : F1.7

  10-50mm : F1.7

• Illuminator
• Built-In Supplement Light TypeIR light
• Built-In Supplement Light RangeUp to 40 m
• IR Wavelength850 nm

• Video
• Main Stream



  50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 760, 704 × 576, 352 × 288)

  60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 760, 704 × 576, 352 × 288)

• Sub-Stream



  50 Hz: 25 fps (1920 × 1080, 1280 × 760, 704 × 576, 352 × 288)

  60 Hz: 30 fps (1920 × 1080, 1280 × 760, 704 × 576, 352 × 288)

• Third Stream



  50 Hz: 25 fps (1280 × 760, 704 × 576, 352 × 288)

  60 Hz: 30 fps (1280 × 760, 704 × 576, 352 × 288)

• Video Compression

  H.264 and H.265 encoding

  Main stream: H.265/H.264/MJPEG

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline profile/Main profile/High profile
• H.265 TypeMain profile

• Audio
• Audio CompressionG.711/G.722.1
• Audio Bit Rate8Kbps (G.711) /16Kbps (G.722.1)

• Network
• ProtocolsTCP/IP,ICMP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IGMP,QoS,IPv4/IPv6,UDP,SSL/TLS,ISUP,ARP,802.1X
• Simultaneous Live ViewUp to 6 channels
• APIONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5),Watermark,IP address filter,Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for ONVIF,RTP/RTSP over HTTPS,Control timeout settings,Security audit log,TLS 1.1,Host authentication (MAC address)
• Network StorageMicro SD/TF card (512 GB), local storage and CVR, NVR, ANPR
• Web BrowserChrome V61+, IE9 to IE11, Firefox V41+, Edge

• Image
• Image SettingsRotation mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable via client software or web browser.
• Day/Night SwitchAuto/Scheduled/Manual
• Wide Dynamic Range (WDR)140 dB
• Image EnhancementBLC, 3D DNR

• Interface
• Ethernet Interface1 RJ45 10M/100M/1000M Ethernet interface
• On-Board StorageBuilt-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512GB
• AudioSupported
• Alarm1 input interface, 1 output interface, 2 relays
• RS-4851 RS-485 interface
• Wiegand1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit)

• Event
• Basic EventHDD Error, Network Disconnected, IP Address Conflicted, Vehicle Detector Exception, Traffic Light Detector Exception

• Road Traffic And Vehicle Detection
• CoverageUp to 3 lane(s)
• Smart Function

  License plate recognition

  Vehicle type classification, color identification, no-plate vehicle capture, vehicle driving direction detection

• LPR Countries/Regions

  Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain,

  Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria,

  Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka,

  America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala,

  Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina,

  Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan

• Accuracy (Under Recommended Installation And Lighting Conditions)

  Capture rate > 99%,

  Vehicle moving direction recognition accuracy > 98.5%,

  LPR accuracy > 98%,

  Mistaken capture rate < 2%

• No License Plate DetectionSupported
• Motorcycle LPRSupported
• Vehicle TypeCar,Van,Bus,Truck,Light Truck,SUV(MPV),Pickup,Motorcycle,Tricycle
• Vehicle Color

  Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black

  Recognizable at daytime only.

• Vehicle Manufacturer84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu, Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, An‘kai, Haima, Foton, King Long, Dongfeng, Geely-Emgrand, Perodua, UD, BYD, Renault Samsung, Proton, HICOM, Malaysia_Unknown 1, Hyundai-Rohens, SsangYong-Old Version, Equus-Old Version, CNHTC, Rolls-Royce, Beiben Truck, Haval, Hino, Kia-Borrego, Chang‘an, Alfa, FORO
• Capture Speed Range5 to 120 km/h

• General
• Operating SystemLinux
• Power

  DC 12 V to 24 V, 1.25 A, max. 15 W, two-core terminal block,

  PoE: 802.3at, Type 2, Class 4, max. 15 W

• MaterialAluminum alloy
• Dimension428.5 mm × 120 mm × 132.8 mm (16.9" × 4.72" × 5.2") (L × W × H)
• Package Dimension452 mm × 398 mm × 198 mm (17.8" × 15.67" × 7.8") (L × W × H)
• WeightApprox. 3 kg (6.61 lb.)
• With Package WeightApprox. 5.19 kg (11.44 lb.)
• Operating Condition-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
• General FunctionOne-key reset, three streams, heartbeat, password protection, watermark
• Language8 languages: English, Russian, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish
• Storage Condition-30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (Non-condensing)

• Approval
• EMCCE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
• SafetyCB: IEC 62368-1: 2014+A11,CB: IEC 62368-1: 2018+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
• EnvironmentCE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
• ProtectionIK10: IEC 62262:2002,IP67: IEC 60529-2013
• Anti-Corrosion Protection-Y: NEMA 4X (NEMA 250-2018)
