Mainboard ASUS Z590 ROG MAXIMUS XIII EXTREME GLACIAL
- Socket: LGA1200
- Kích thước: E-ATX
- Số khe RAM: 4
- Tích hợp block tản nhiệt nước
Tên gọi |
ASUS Z590 ROG MAXIMUS XIII EXTREME GLACIAL |
CPU hỗ trợ |
Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU |
Chipset / Socket |
Intel® Z590 Chipset |
Bộ nhớ (RAM) |
4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem III |
Công nghệ đa GPU |
NVIDIA 2-Way SLI® Technology |
Khe cắm mở rộng |
Intel® 11th &10th Gen Processors 2 x PCIe 4.0/3.0 x16 slot(s) - Intel® 11th Core™ processors support PCIe 4.0 x16 or x8/x8 mode(s) - Intel® 10th processors support PCIe 3.0 x16 or x8/x8 mode(s) Intel® Z590 Chipset 1 x PCIe 3.0 x4 slot |
LAN / Wireless |
1 x Intel® I225-V 2.5Gb Ethernet 1 x Marvell® AQtion AQC113CS 10Gb Ethernet |
Âm thanh |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192 kHz playback* Audio Features - SupremeFX Shielding Technology - ESS® SABRE9018Q2C DAC/AMP - LED-illuminated audio jacks - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Audio cover |
Cổng kết nối (Internal) |
Fan and Cooling related 2 x 4-pin Chassis Fan header(s) 2 x 4-pin Radiator Fan header(s) 2 x W_PUMP+ header(s) 1 x WB_SENSOR header(s) 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pin PCIe Graphics Card connector Storage related 3 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen Gen 2 connector (support(s) USB Type-C®) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x WB_ADD header(s) 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x LN2 Mode jumper 8 x ProbeIt Measurement Points 1 x ReTry button 2 x RSVD switch 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Speaker header 1 x Start button 1 x V_LATCH switch 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
Cổng kết nối (Back Panel) |
2 x Thunderbolt™ 4 USB Type-C® port(s) 8 x USB 3.2 Gen 2 port(s) (8 x Type-A) 1 x HDMI™ port 1 x ASUS Wi-Fi Module 1 x Marvell® AQtion AQC113CS 10Gb Ethernet 1 x Intel® I225-V 2.5Gb Ethernet port 5 x LED-illuminated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
Công nghệ độc quyền |
Extreme OC Kit - FlexKey button - LN2 Mode - Probelt - ReTry button - Safe boot button - Start button - Slow Mode Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS Q-Design - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - Aluminum backplate - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot AURA Sync - ROG AURA sync backplate - AURA RGB header(s) - Addressable Gen 2 RGB header(s) Dual BIOS Color OLED 1.77" ASUS HYDRANODE |
Phụ kiện đi kèm |
Cables 1 x 1-to-3 ARGB splitter cable 2 x 1-to-4 fan splitter cable 1 x RGB extension cable 3 x ROG weave SATA 6G cables 1 x 3-in-1 Thermistor cables pack ROG Fan Controller 1 x ROG Fan Controller 1 x Fan EXT PWR cable 1 x ARGB input cable 1 x USB input cable 1 x ROG Fan Controller velcro tape 1 x Fan Controller manual ROG DIMM.2 with Heatsink 1 x ROG DIMM.2 with heatsink 1 x M.2 pad for ROG DIMM.2 2 x M.2 screw package for ROG DIMM.2 Additional Cooling Kit 1 x Monoblock 3 x Screw package for monoblock 1 x Thermal pad for monoblock 1 x Fittings for monoblock Miscellaneous 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas 1 x M.2 Rubber Package(s) 1 x M.2 SSD screw package(s) 1 x Q-connector 1 x ROG CLAVIS DAC 1 x ROG key chain 1 x ROG logo plate stickers 1 x ROG multi-bit screwdriver 1 x ROG stickers 1 x ROG thank you card 1 x ROG Graphics card holder Installation Media 1 x USB drive with utilities and drivers Documentation 1 x User manual |
Hệ điều hành khuyến nghị |
Windows® 10 64-bit |
Chuẩn kích cỡ |
EATX Form Factor |
Đánh giá Mainboard ASUS Z590 ROG MAXIMUS XIII EXTREME GLACIAL
Mainboard ASUS Z590 ROG MAXIMUS XIII EXTREME GLACIAL - là bo mạch chủ sử dụng chipset Z590 của Intel cao cấp nhất của Asus.Bo mạch chủ này sử dụng socket LGA 1200 có thể chạy được CPU Intel Core thế hệ 10 & 11.
Thiết kế

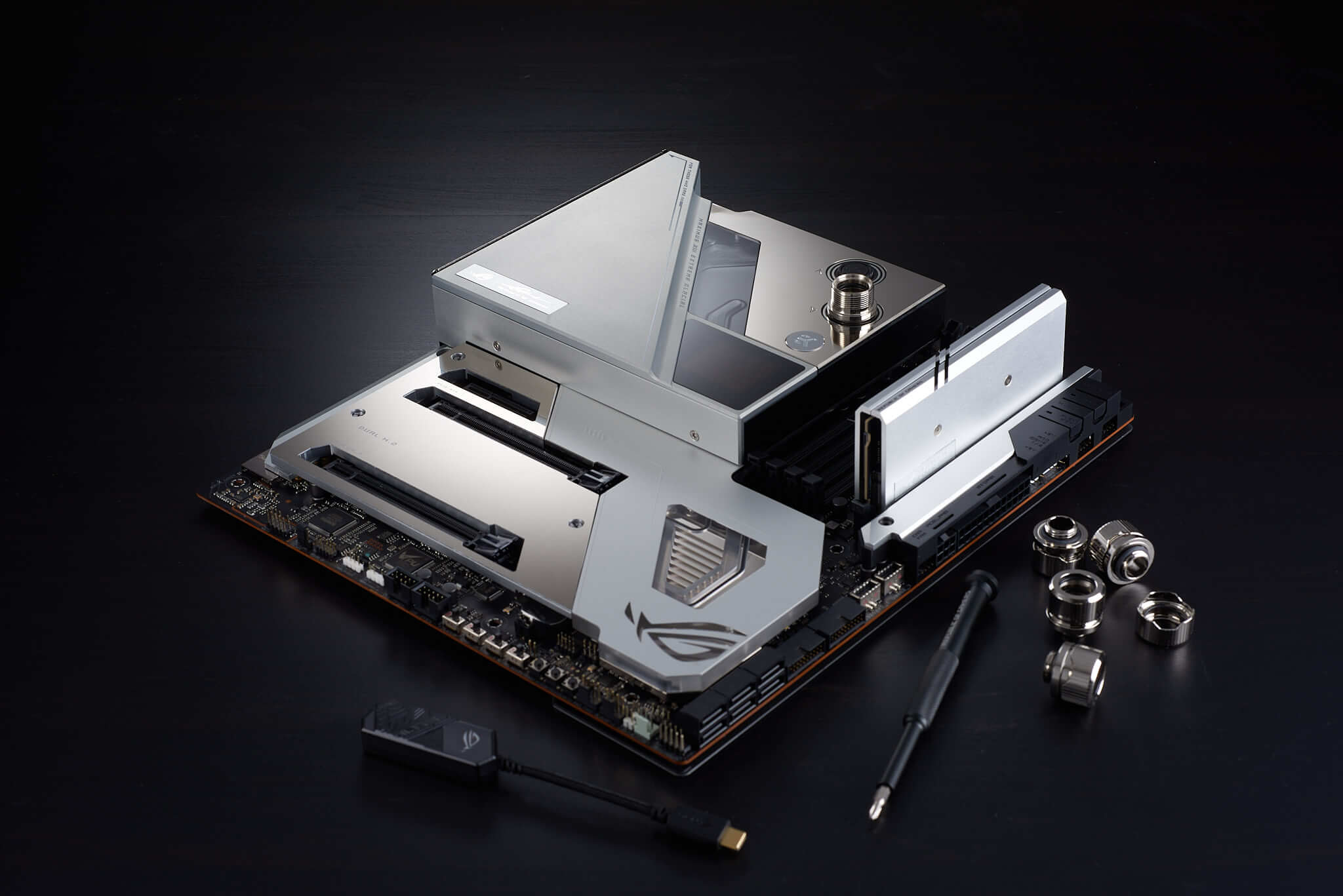

Mainboard ASUS Z590 ROG MAXIMUS XIII EXTREME GLACIAL sở hữu thiết kế cực kỳ hầm hố với block tản nhiệt nước được tích hợp sẵn được gia công bởi thương hiệu hàng đầu EK. Phần giáp tản nhiệt kim loại được bố trí gần như 80% diện tích bề mặt của bo mạch chủ, đảm bảo khả năng tản nhiệt tốt nhất có thể cho toàn bộ các linh kiện
Trang bị
- 20 phase nguồn (18+2) - 100A
- USB 3.2 gen 2 Type C
- 5 Khe M.2 PCI-e gen 4
- Wifi 6
- Thunderbolt 4 Support
Các tính năng chính
Nâng cấp lớn nhất của các bo mạch chủ Z590 so với Z490 đó là sự hỗ trợ của kết nối PCI-e thế hệ 4.0 cho băng thông gấp đôi thế hệ 3.0 trước đó. Với sự hỗ trợ của băng thông lớn, giờ đây các ổ cứng SSD M.2 sử dụng trên bo mạch chủ Z590 có thể cho tốc dộ lên đến 7500Mb/s.
Nâng cấp thứ 2 đó là bus RAM mặc định được tăng từ 2933Mhz (Z490) lên 3200Mhz (Z590)
Ngoài ra, Asus còn tích hợp trên các bo mạch chủ của mình tính năng giảm nhiễu Audio 2 chiều cho khả năng đàm thoại rõ ràng hơn bao giờ hết.
Bo mạch chủ tích hợp trí thông minh nhân tạo
Các bo mạch chủ của Asus tích hợp trí thông minh nhân tạo được phát triển trong nhiều năm cho phép Overclock CPU, tự động điều chỉnh tốc độ quạt để tối ưu tản nhiệt và nhiều tính năng tự động khác.
