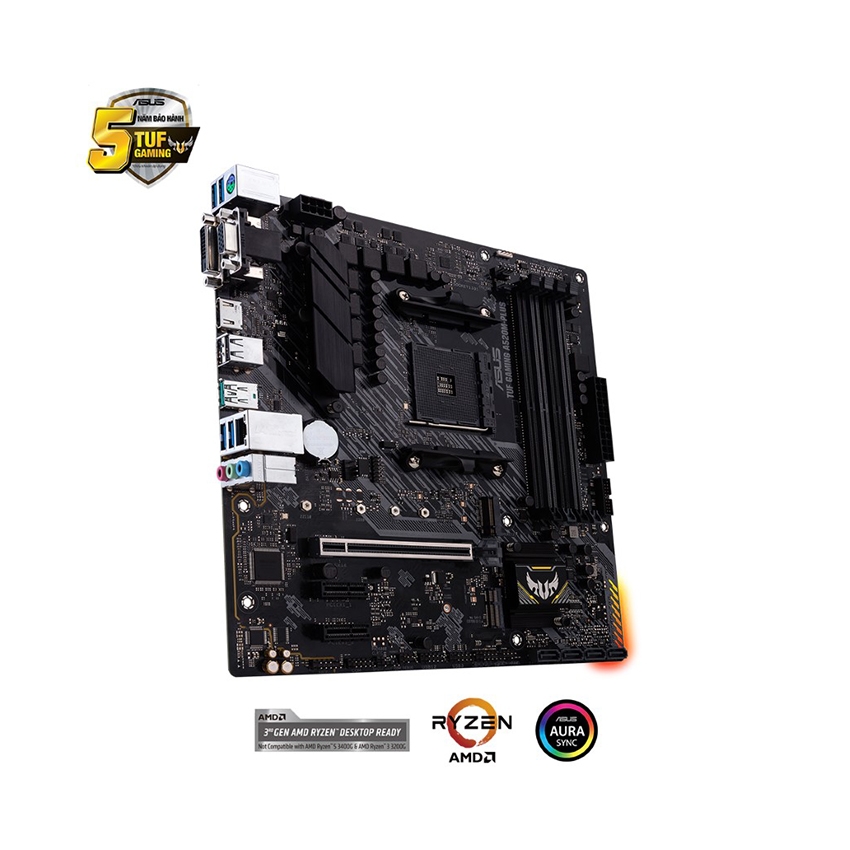

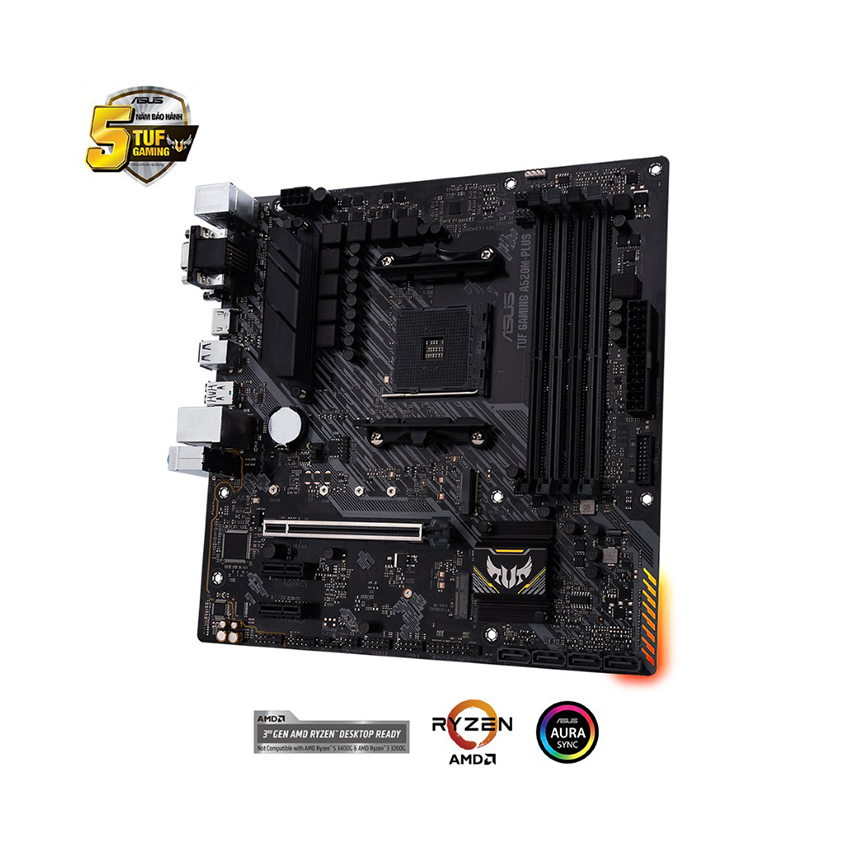

Mainboard ASUS TUF GAMING A520M-PLUS

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

Asus TUF Gaming A520M-PLUS

Socket

AM4

Hỗ trợ CPU

Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors *
* Refer to www.asus.com for CPU support list

Chipset

AMD A520

Hỗ trợ RAM

4 x DIMM, Max. 128GB, DDR4 4800(O.C)/4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
ECC Memory (ECC mode) support varies by CPU.

Cạc đồ họa

VGA onboard

Âm thanh

Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC

Cạc mạng

Realtek LS8200A 1Gb Ethernet

Khe cắm trong

3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1

Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports
3rd Gen AMD Ryzen™ Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10

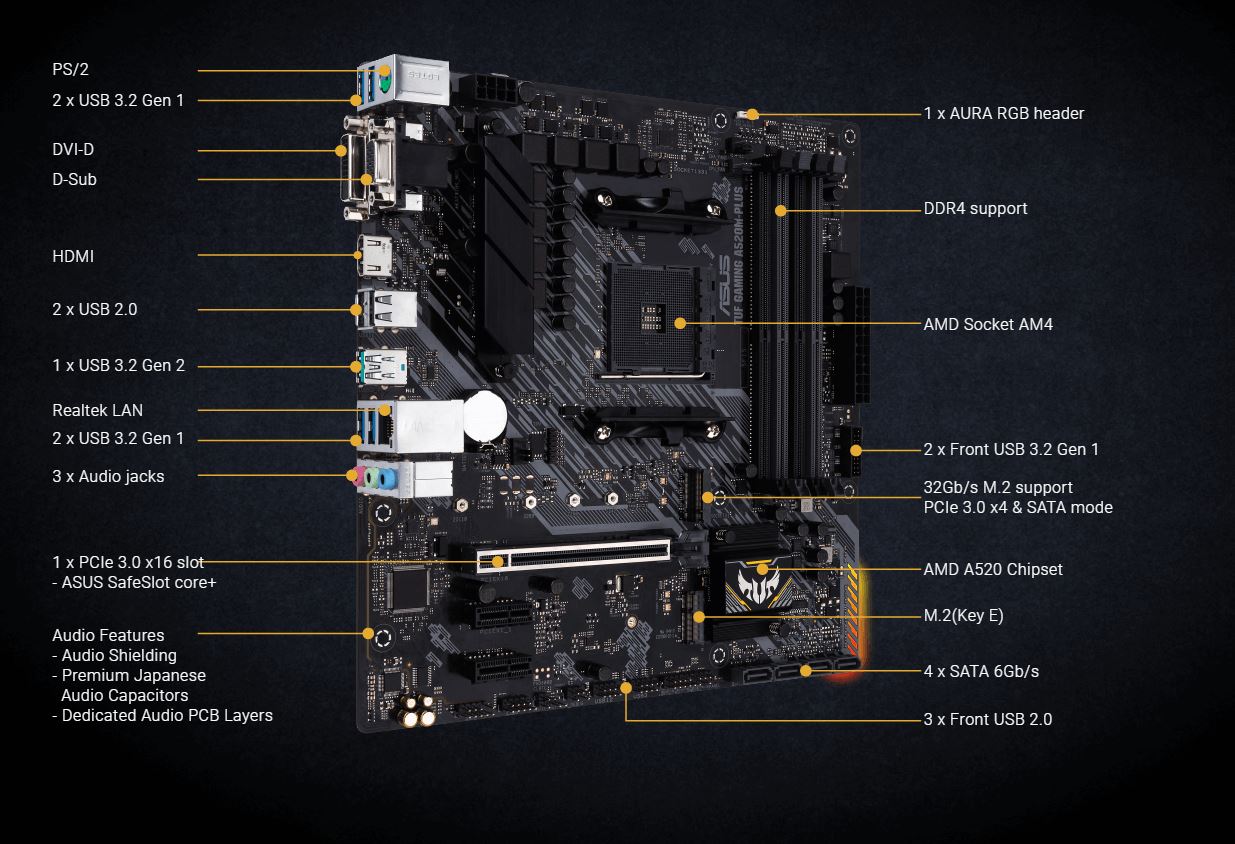

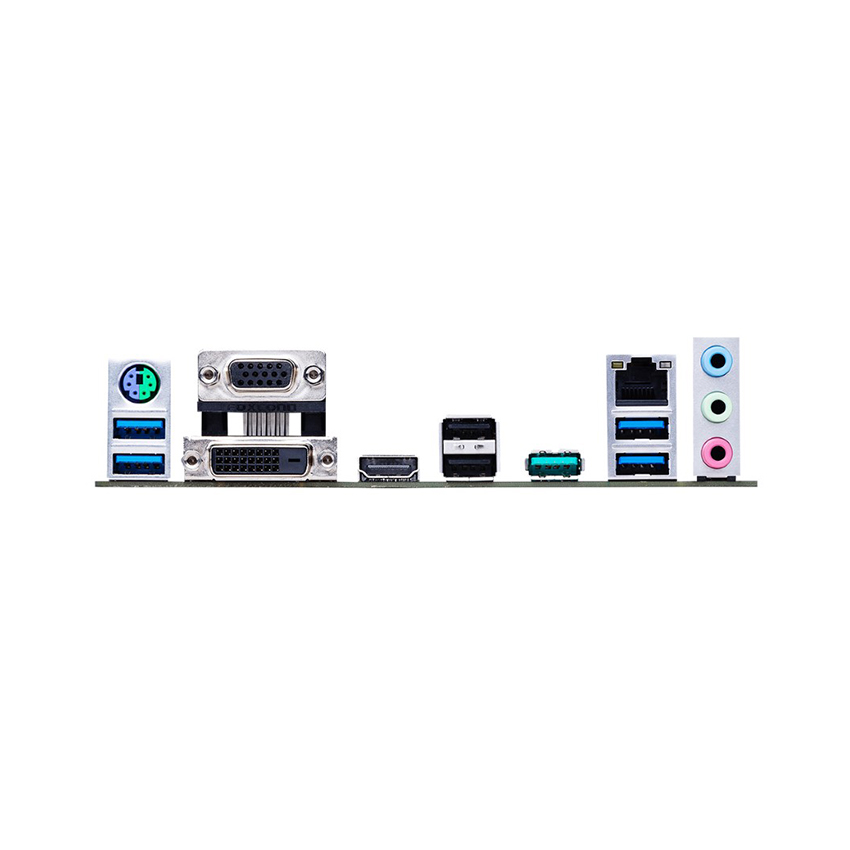

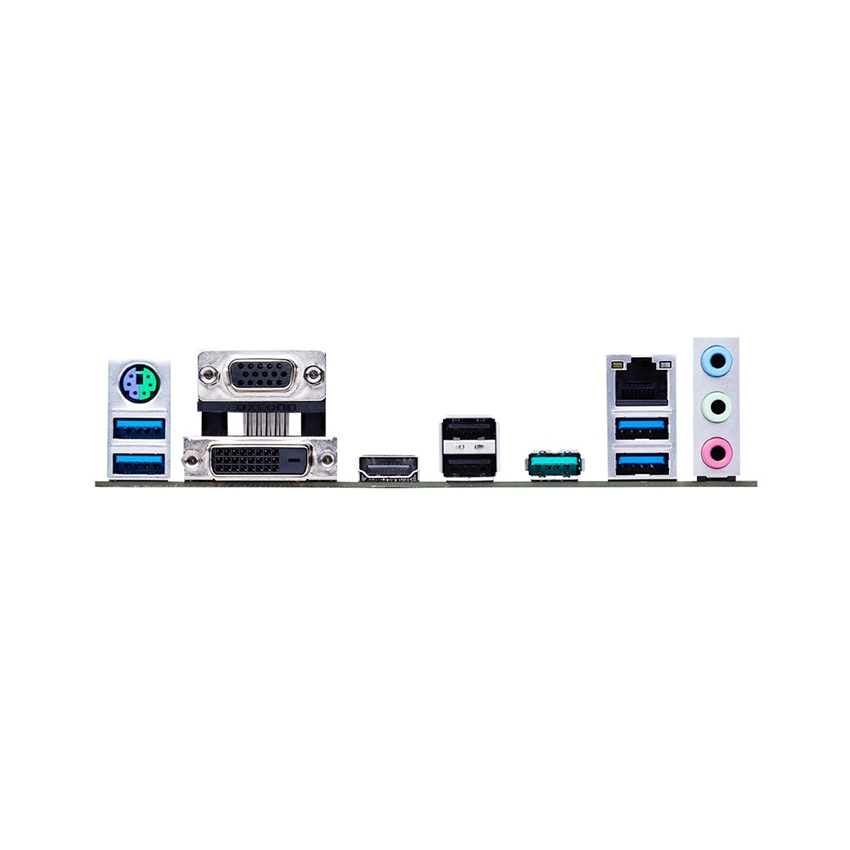

Cổng giao tiếp ngoài

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.2 Gen 2 (teal blue)Type-A,
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)

Kích thước

mATX
