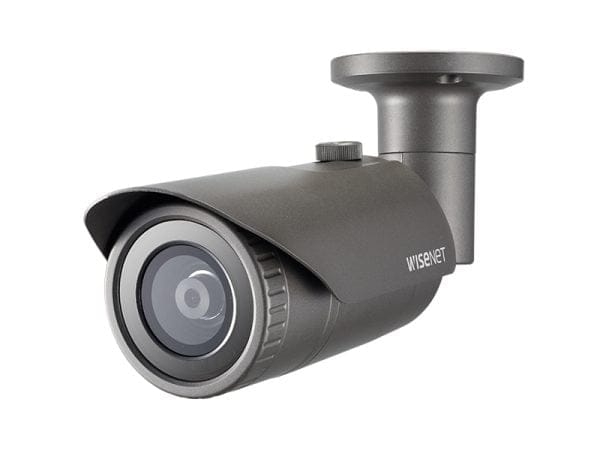

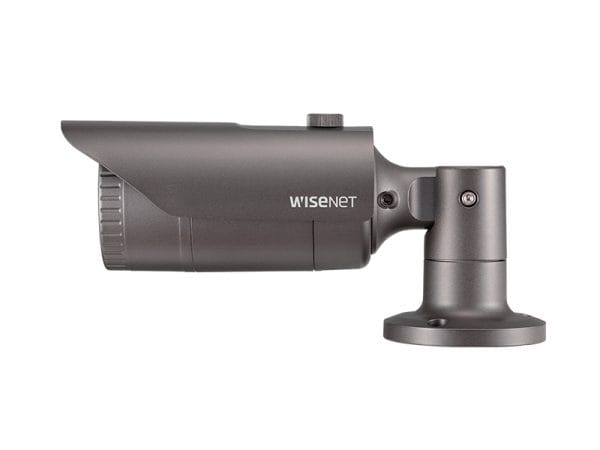

Camera QNO-7032R

Mã sản phẩm: QNO-7032R
chia sẻ
thông tin sản phẩm
Chức năng
- Maximum 4MP resolution.
- Color : 0.15Lux (F2.0, 1/30sec) B/W : 0Lux (IR LED On).
- 6mm fixed focal.
- Maximum 30fps@4MP all resolutions (H.265/H.264).
- H.265, H.264, MJPEG codec supported, Multiple streaming.
- Motion detection, Tampering, Defocus detection.
- Hallway view (90°/270°), LDC support.
- Micro SD/SDHC/SDXC memory slot (128GB).
- IR viewable length 30m (98.42ft).
- IP66, IK10, PoE, 12VDC.
mô tả ngắn
quà tặng
ĐÁNH GIÁ:
Camera QNO-7032R 0/5, tổng số 0 lượt bình chọn
Video
Imaging Device 1/3" CMOS
Resolution 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate H.265/H.264 : Max. 30fps at 4M all resolutions, MJPEG : Max. 15fps
Min. Illumination Color : 0.15Lux (F2.0, 1/30sec)
B/W : 0Lux (IR LED On)
Video Out CVBS : 1.0 Vpp/75Ω composite, 720x480(N), 720x576(P) for installation
Lens
Focal Length (Zoom Ratio) 6mm fixed focal
Max. Aperture Ratio F2.0
Angular Field of View H : 49.0˚, V : 27.6˚, D : 55.6˚
Focus Control Fixed
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR
Motion Detection 4ea, polygonal zones
Privacy Masking 6ea, rectangular zones
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum/Maximum/Anti flicker (1/5~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
Analytics Defocus detection, Directional detection,
Motion detection, Enter/Exit, Tampering, Virtual line
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail,
Notification via e-mail,
SD/SDHC/SDXC or NAS recording at event triggers,
Alarm output, Handover
Audio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
IR Viewable Length 30m (98.42ft)
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression H.265/H.264 : Main/High, MJPEG
Audio Compression G.711 u-law / G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz,
G.726 16Kbps, 24Kbps, 32Kbps, 40Kbps
Smart Codec Manual (5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265 : CBR or VBR
MJPEG : VBR
Streaming Unicast (6 users) / Multicast
Multiple streaming (Up to 3 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP,
SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access Log
802.1X Authentication
Application Programming Interface ONVIF Profile S/G/T, SUNAPI (HTTP API)
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
Memory 512MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40˚C~+55˚C (-40˚F~+131˚F) / Less than 95% RH
*Start up should be done at -30˚C or above
Storage Temperature / Humidity -40˚C~+60˚C (-40˚F~+140˚F) / Less than 95% RH
Certification IP66, IK10
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption PoE: Max 10.7W, typical 8W
12VDC: Max 9.1W, typical 6.8W
Mechanical
Color / Material Dark grey / Aluminum
Product Dimensions / Weight Ø70.0 x 246.0mm (Ø2.76 x 9.69"),
700g (1.543 lb)
Compatible Conduit hole / Gangbox Single, Double, 4"Octagon
Backbox SBO-100B1
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) 112.3m(368.60ft)
Observe (63PPM/ 19PPF) 44.9m(147.44ft)
Recognize (125PPM/ 38PPF) 22.5m(73.72ft)
Identify (250PPM/ 76PPF) 11.2m(36.86ft)
Thông tin sản phẩm
Bình luận
Camera QNO-7032R Camera QNO-7032R
Tic.vn Hà Nội computer Phúc Anh An Khang
Giá 8,439,000 VND
Cấu hình Chức năng - Maximum 4MP resolution. - Color : 0.15Lux (F2.0, 1/30sec) B/W : 0Lux (IR LED On). - 6mm fixed focal. - Maximum 30fps@4MP all resolutions (H.265/H.264). - H.265, H.264, MJPEG codec supported, Multiple streaming. - Motion detection, Tampering, Defocus detection. - Hallway view (90°/270°), LDC support. - Micro SD/SDHC/SDXC memory slot (128GB). - IR viewable length 30m (98.42ft). - IP66, IK10, PoE, 12VDC.
Bảo hành
Khuyến mại
0936.368.995
